The new, improved

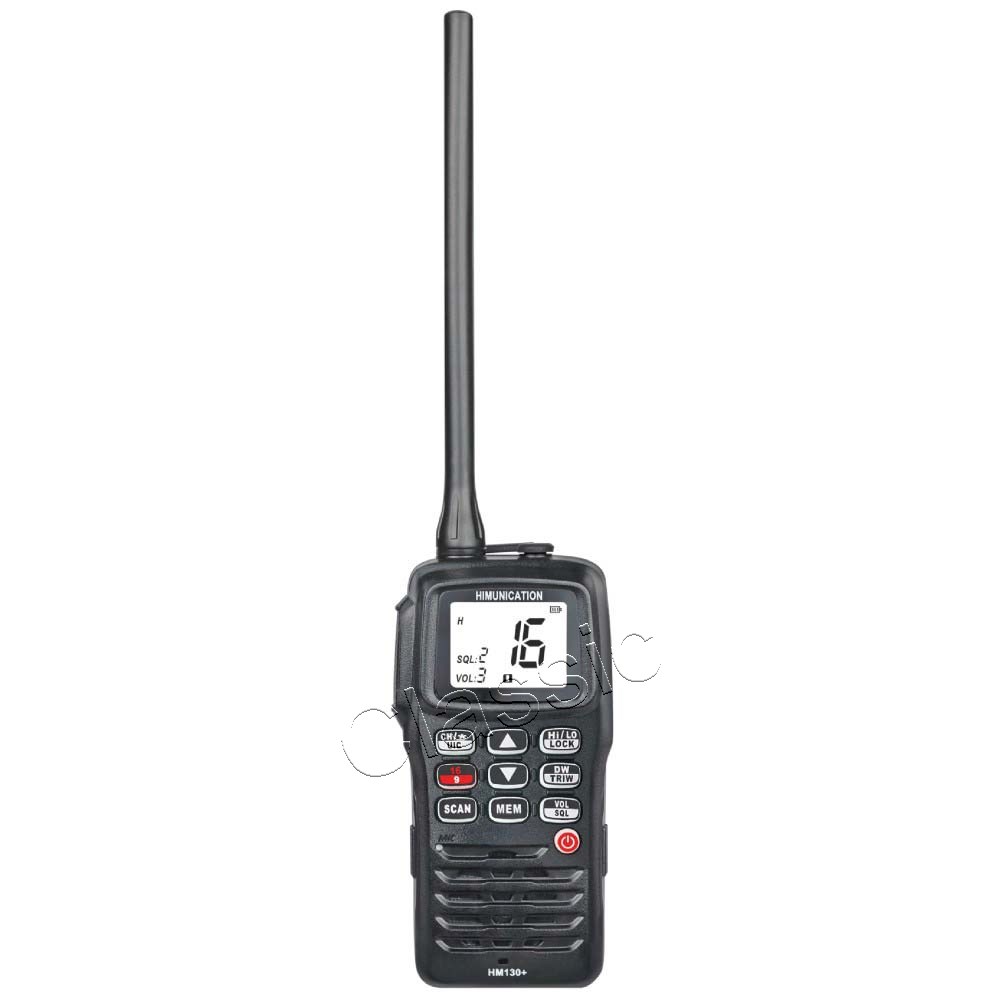

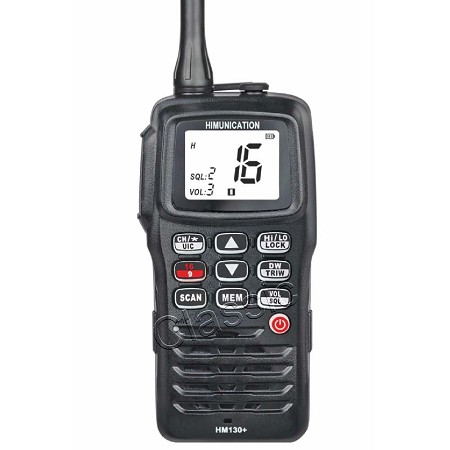

HIMUNICATION HM130+ is a VHF FM marine handheld with advanced functions.
The handheld is fully PC programmable with the optional programming cable. The ATIS code can also be programmed by us.
Features
- IPX8 waterproof
- Float and Flash
- ATIS (one-time programmable by keypad)
- Channel 31 + 37
- Private channel facility
- 16/9 channel switch
- 1/3/6 Watt switchable power
- Dual and tri watch
- Large and bright white LCD screen with backlight
Specifications
| Frequency Range | : | Transmit 156.050 - 157.425 MHz |
| Frequency Range | : | Receive 156.025 - 162.000 MHz |
| Number Of Channels | : | According to VDES (VHF Data Exchange System) International Standard |
| Oscillate Mode | : | PLL |
| Modulation | : | FM(16K0G3E) |
| Channel Spacing | : | 25 KHz |
| Frequency Stability | : | ±5 PPM |
| Operation Temperature | : | -20 ~ +55 °C |
| Normal Working Voltage | : | 7,4 V/1200 mAh (Li-Polymer Battery) |
| Battery Lifetime | : | ( TX 5% / RX 5% / Standby 90%) > 10 Hours. |
| Memory | : | EEPROM |
| Antenna Socket | : | SMA-Male |
| Display | : | Large LCD With White Background Light |
| Speaker | : | Built-in |
| Dimensions | : | L130 × W56 × H30 mm |
Accessories supplied:
- Rubber Duck Antenna - SMA-Female
- 7.4V slide lock Li-Polymer Battery Pack (1200 mAh)

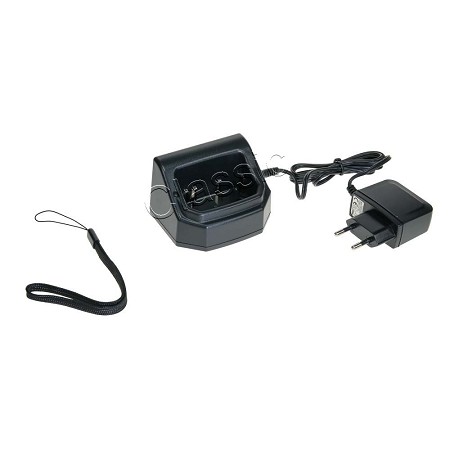

- AC 100~240V / DC 9V Desktop charger (worldwide)
- Hand Strap
- Belt clip
The English manual can be downloaded on this site (PDF-link righthand) or at the Himunication website.
Dimensions and weight are including packaging
| Dimensions |
: |
L17x B19 x H7 cm |
| Weight |
: |
0,54 kg |
