The new
HIMUNICATION HM390 with ATIS is a new generation VHF radio with DSC class-D and integrated GPS receiver. Equipped with a large LCD screen that displays all the data clearly from most viewing angles and conditions. Simple and easy to operate. The slim and compact design makes it easy to install. Equipped with a large internal speaker.
Channels according to VHF Data Exchange System (VDES) International Standard.
The ATIS and MMSI codes can be programmed once manually. After that only by PC and software.
Features
- Cast aluminum housing
- Water proof according to IP67 standard
- LCD display with backlight
- Channel 31 + 37 pre-programmed
- Connector for external speaker (3,5 mm)
- MOB Alert (Man Overboard)
- Equipped with DSC system
- Integrated GPS receiver + connector for external GPS antenna. (not included)
The large LCD with full dot-matrix display of the HIMUNICATION HM380 marine radio clearly shows all data and active functions.
Specifications
| Frequency range TX | : | 156.025 - 157.425 MHz |
| Frequency range RX | : | 156.300 - 162.000 MHz |
| Channels | : | 57 international |
| Mode | : | FM (16K0G3E) / DSC (16K0G2B) |
| Waterproof | : | According to IP67 standaard |
| ATIS | : | yes |
| MMSI | : | yes |
| Output power | : | High (HI) - 25 W | Low (LO) - 1W |
| Scan function | : | yes |
| Audio-output receiver | : | > 5 W @ 4 Ohm |
| Squelch | : | yes |
| Priority channel | : | yes, channel 9/16 |
| DSC-System | : | yes, class D |
| Foghorn/hailer function | : | yes |
| Distress key | : | yes |
| Dual Watch Function | : | yes, to monitor channel 16 and current channel in cycle |
| Triple Watch Function | : | yes, to monitor channel 16, current channel and one programmed channel in cycle |
| Keys microphone | : | die most important functions can be chosen on the keypad of the microphone |
| Connections | : | for external loudspeaker/GPS (3,5 mm Mono/GPS) |
| Ambient temperature | : | -15°C to +55°C |
| Power supply | : | 13,8 VDC |
| Dimensions | : | H 180 x W 91 x D 55 mm (without mounting bracket) |
| Weight | : | 970 gr (only radio) |

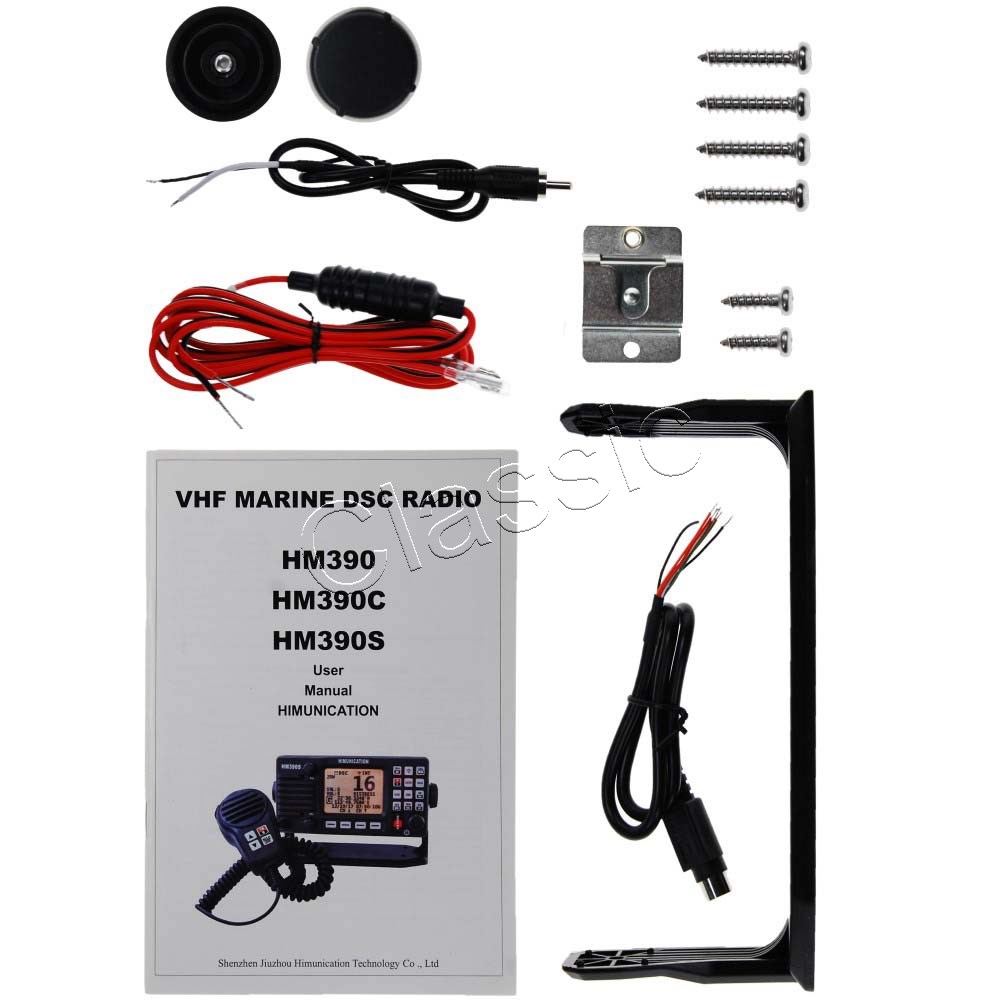

The Himunication HM390 is supplied with:
- Hand Microphone
- Microphone holder
- DC cable
- Mounting bracket with screws
- Manual English
Dimensions and weight are including packaging
| Dimensions |
: |
L25 x B23 x H13 cm |
| Weight |
: |
1,65 kg |
