YAESU FTM-510DE ASP
YAESU FTM-510DE ASP
YAESU FTM-510DE ASP
YAESU FTM-510DE ASP
YAESU FTM-510DE ASP

YAESU FTM-510DE ASP

VHF/UHF C4FM/FM DUAL BAND Mobile Radio
With free Yaesu Cap and 5 year warranty (only EU)


Description
RRP ex VAT
Excl VAT
Incl VAT
Per
Qty

YAESU FTM-510DE ASP
Art. 30503537
In stock. Delivered in 2-5 working days
RRP € 567,00
Excl VAT € 503,31
incl VAT € 503,31
Per 1 St.
All prices excl. shipping costs
FOR EU PRIVATE CUSTOMERS
VAT will be automatically recalculated for the country, of which the flag on top has been chosen.
COMPANIES WITH EU VAT-ID-NUMBER
Please register with EU VAT-ID-No. before ordering online the first time. After manual check we will change VAT into 0%. Existing customer, please login first.
Recommend item to a friend
Download this info in PDF
Download manual

YouTube geblokkeerd

To view YouTube videos you must accept the 'Marketing' cookies.

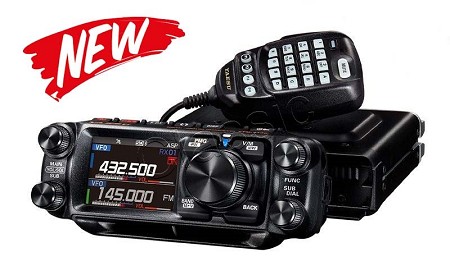

We are pleased to introduce the new C4FM Digital/ FM 55W (VHF)/ 50W (UHF) Dual-Band Mobile Transceiver FTM-510DE ASP. The FTM-510DE ASP shares the core feature set as the current FTM-500DE yet equipped with the new Super-DX and ASP (Audio Digital Signal Processor Unit).

New features:

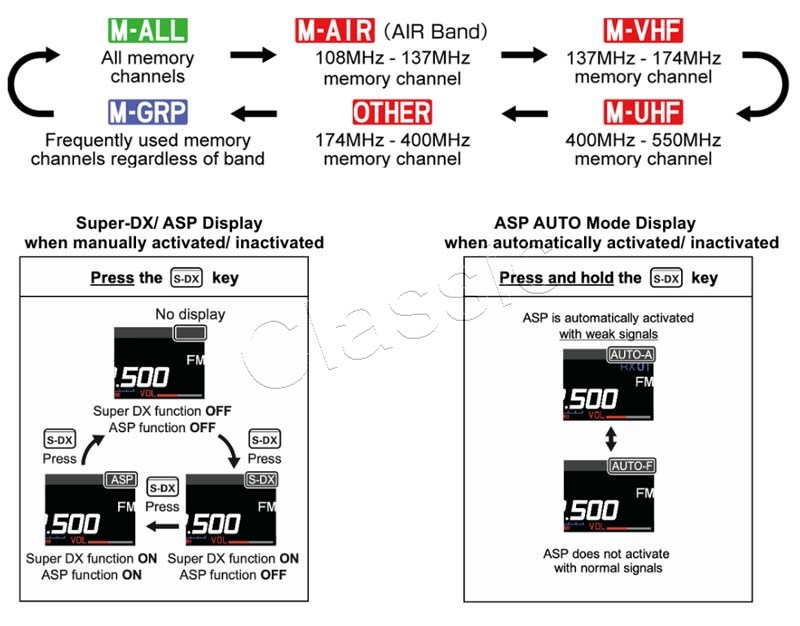

  • Super-DX: When the received signal is weak, the sensitivity of the RF amplifier can be increased by activating the Super-DX function in both C4FM digital / FM analog modes.
  • ASP (Audio Digital Signal Processor): When operating in FM analog mode, the ASP can also be activated in addition to the Super-DX. By digitally processing the received FM audio to remove noise, the ASP ensures reliable and comfortable audio quality for weak signals. This helps to expand the communication range. ASP AUTO mode is also selectable. In this mode, the ASP is automatically activated when the transceiver detects weak signals in FM analog mode.

    • For intuitive and effortless operation, the PMG and MAG functions of the FTM-510DE ASP have been improved.
  • PMG (Primary Memory Group): Up to 5 VFO or Memory Channel frequencies can be assigned to the PMG (Primary Memory Group) and monitored. The reception status of the PMG channels is displayed with an orange/ gray-colored bar graph in the PMG screen. When a signal disappears, the bar graph color changes from orange to gray in real time. With the FTM-510DE ASP, the gray bar graphs (historical received signals) automatically fade out 2 seconds after a signal is lost. With the FTM-500DE, the gray bar graphs remain until they are manually reset by pressing the DIAL knob.
  • MAG (Memory Auto Grouping): In addition to Memory channels which can be recalled by each band, the FTM-510DE ASP has the new “My Group(M-GRP)” feature which permits selection of any memory channel regardless of band.

  • The FTM-510DE ASP does not include the built-in Bluetooth unit. By installing the optional Bluetooth® unit BU-5, hands-free operation is available with the SSM-BT20 or a commercially available Bluetooth® product.

    • For the current FTM-500DE users, the updated PMG function and “My Group” in MAG feature will be available by updating the firmware at yaesu.com if it is preferable. The applicable firmware will be released by the end of February 2025.

General Features
  • Digital communication using Yaesu C4FM on both bands
  • Transponderfunctie also available in C4FM
  • Equipped with AMS (Automatic Mode Select) feature that automatically selects the analog FM or the C4FM digital modes, according to the signal of the other station
  • Simulaneous reception of two separate frequencies, on different bands, or within the same band (V+V/U+U)
  • SEARCH & GO enables Dual-Receive of a desired frequency during Main channel operation
  • Memory Channel Band Auto Grouping (MAG). The memory channels are automatically categorized in each band, so that memory channels can be easily and quickly recalled
  • "E2O-II (Easy to Operate II)", which enables easier and smoother operation of frequently used functions, such as direct frequency input, memory channel recall, and signaling changes, which are used in the function menu.
  • TOUCH & GO enables initiating communications quickly by touching the target frequency
  • MCS (Multi Channel Standby) is a convenient function that can automatically watch multiple memory channels that are registered in each group of the MAG function (except for M-ALL).
  • The DG-ID (Digital Group ID) feature and the Group Monitor (GM) feature enable automatically locating, and communicating with other stations that are within contact range and have the matching DG-ID number (Group ID number from 00 to 99).
  • The 2-inch High-Resolution QVGA Full-Color TFT Display shows the communication status and settings of the FTM-300DE in a straightforward manner, achieving excellent operability
  • Wide-band reception (108 MHz to 550 MHz)
  • Equipped with Bluetooth® function as standard. Support hands-free communication by using the optional Bluetooth headset SSM-BT10
  • Large-capacity 1103 memory channels
  • Individual 3W Dual AESS Audio Speaker System*); one in fronpanel and one in main unit
  • Heavy Duty-Heat Sink with FACC (Funnel Air-Convection Conductor)
  • High-resolution band scope that displays 61 channels
  • Smart Navigation function
  • Snapshot function (optional camera/microphone MH-85A11U is required)
  • Wires-X Portable Digital Node or Fixed Node with HRI-200
  • Equipped with digital GM (Group Monitor) function
  • Ready for APRS communication with world standard 1200/9600 bps AX25 modem
  • Digital Personal ID (DP-ID) feature
  • Compatible with microSD memory cards max. 32 GB

*) AESS (Acoustic Enhanced Speaker System) The combination of the frontpanel speaker and the main unit speaker and the digital audio processing of the FTM-500DE produce high audio quality with a wide spectrum and also give a 3- D acoustic effect. The balance and frequency response of both speaker systems can be adjusted to personal preference in the menu.

Specifications
Frequency ranges RX : 108-137 MHz (Air Band), 137-174 MHz, 174-400 MHz, 400-480 MHz, 480-550 MHz
Frequency ranges TX : 144-146 MHz, 430-440 MHz
Channel steps : 5, 6.25 (8.33), 10, 12.5, 15, 20, 25, 50, 100 kHz
Circuit Type : Double-Conversion Superheterodyne
Modulation Type : F1D, F2D, F3E: Variable Reactance Modulation F7W: 4FSK (C4FM)
Output power : 55 W - 50 W/25 W/5 W
Memories : 1.103
Antenna connector : SO 239 (PL-female)
Dimensions : W139 x D132 x H42 mm (without fan )
 : W156 x D58,6 x H64 mm (without knobs)
Weight : 1,4 kg

The FTM-510DE ASP is supplied with:
  • DTMF-Microphone SSM-85D
  • Bracket for Main Body
  • DC-Cable with fuse
  • Spare fuse 15 A
  • Operating Manual English

Three installation options are:

  1. Built-in or surface-mounted using the mobile bracket supplied as standard. It can be mounted upwards or downwards.
  2. Built-in with swiveling control panel. Main unit under the seat or elsewhere and control panel on the dashboard. Use MMB-103 and optional 3m or 6m extension cables.
  3. Built-in or surface-mounted using the swiveling control panel. Use SJMK-500. No additional extension cables required.


Dimensions and weight are including packaging
Dimensions  :  L27 x B25 x H8 cm
Weight  :  2,90 kg
