MAAS RX-600

SWR/power cross needle meter
1,8-200 MHz + 140-525 MHz


Description
Excl VAT
Incl VAT
Per
Qty

MAAS RX-600
Art. 30415251
Item not available. Delivery time not yet known
Excl VAT € 106,61
incl VAT € 106,61
Per 1 St.
Temporarily sold out
All prices excl. shipping costs
FOR EU PRIVATE CUSTOMERS
VAT will be automatically recalculated for the country, of which the flag on top has been chosen.

COMPANIES WITH EU VAT-ID-NUMBER
Please register with EU VAT-ID-No. before ordering online the first time. After manual check we will change VAT into 0%. Existing customer, please login first.
Recommend item to a friend
Download this info in PDF

YouTube geblokkeerd

To view YouTube videos you must accept the 'Marketing' cookies.

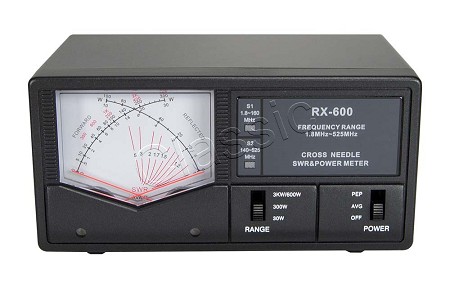

The MAAS RX-600 is a cross needle SWR/Power Meter for HF, VHF and UHF.

Specifications

Frequency range : 1,8-200 MHz (S1) + 140-525 MHz (S2)
Type meter : cross needle
Ranges : 30/300/3000 W | Peak and average power
Continuous power rating : CW/SSB 1,2-200 MHz = 300 W | 140-525 MHz = 300 W
Max. power handling : 3 kW - 15 sec. | 2 kW - 30 sec. | 1 kW - 60 sec.
Min. power input : 0,5 W
Precision : 30 W range ± 5% | 300 W range ± 5% | 600 W range ± 7,5% | 3 kW range ± 7,5%
Impedance : 50 Ohm
Connectors : 2 x SO 239 (PL female; 1,8-200 MHz) + 2 x N-type female (140-525 MHz)
Dimensions : W 150 x D 100 x H 65 mm
Weight : 630 g

Dimensions and weight are including packaging
Dimensions  :  L21 x B16 x H10 cm
Weight  :  0,81 kg
