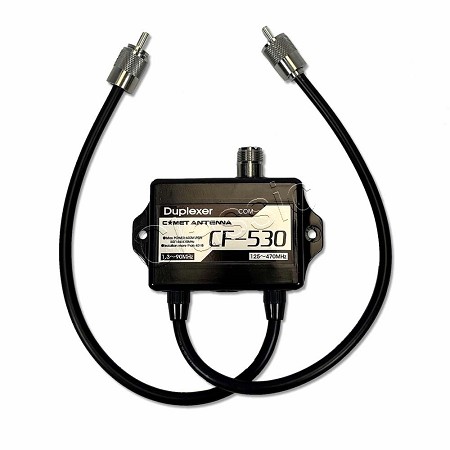

COMET CF-530

Duplexer
1,3-90 | 125-470 MHz


Description
Excl VAT
Incl VAT
Per
Qty

COMET CF-530
Art. 3040112
In stock. Delivered in 2-5 working days
Excl VAT € 57,44
incl VAT € 57,44
Per 1 St.
All prices excl. shipping costs
FOR EU PRIVATE CUSTOMERS
VAT will be automatically recalculated for the country, of which the flag on top has been chosen.

COMPANIES WITH EU VAT-ID-NUMBER
Please register with EU VAT-ID-No. before ordering online the first time. After manual check we will change VAT into 0%. Existing customer, please login first.
Recommend item to a friend
Download this info in PDF

YouTube geblokkeerd

To view YouTube videos you must accept the 'Marketing' cookies.

The Diamond MX-62M duplexer is a.o. suitable for transceivers with separate in/out for HF + 6 m. and VHF/UHF (e.g. FT-857D and FT-897D) and FTX-1 series (using a BNC adapter).

Specifications

Frequency range : 1,3-90 MHz + 125-470 MHz
Connectors : SO 239 | PL-male/PL-male with approx. 35 cm pigtail
Max. power : 600 W PEP
Insertion loss : < 0,2 dB (1,3-90 MHz) | < 0,3 dB (125-470 MHz)
Isolation : > 45 dB
Dimensions : W 90 x H 66 x D 26 mm
Weight : 325 gram

WARNING DIAMOND!

While using the new digital modes FT8 / FT4 / WSPR, there is an excessive load for the antenna and other equipment due to continuous carrier broadcast. Then reduce the output power for all Diamond antennas to max. 1/5 of the specified SSB(PEP) max. power.
.

Dimensions and weight are including packaging
Dimensions  :  L30 x B11 x H3 cm
Weight  :  0,38 kg
