The

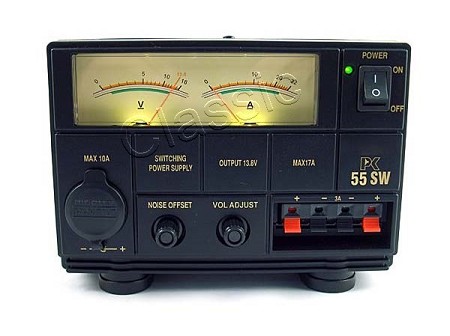

PC-55 SW is a super lightweight switching power supply.
Features
- Rugged metal housing
- Separate V- and A-meter (analogue)
- Frontside has socket to fit cigarette lighter plug (max. 10 A) and two DC terminals max. 3 A
- Noise offset control to detune the switching frequency
- Short circuit and overload protection
- Low noise fan on the back
Specifications

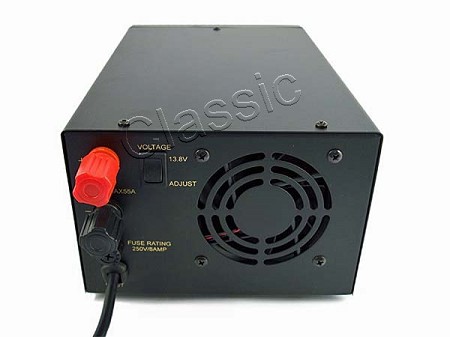

| Input voltage | : | 220-230 VAC/50-60 Hz (fuse on backside) |
| Output voltage | : | 9-15 VDC, adjustable | Fixed 13,8 VDC with switch at backside |
| Current | : | 50 A continuous |
| Dimensions | : | B 170 x H 125 x D 260 mm |
| Weight | : | approx. 2,68 kg |
Dimensions and weight are including packaging
| Dimensions |
: |
L37 x B19 x H15 cm |
| Weight |
: |
2,90 kg |
