Sirio Gain Master is the ideal DX antenna for 10/11m !
The antenna has been completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth. Engineered with the most advanced available technologies it is completly manufactured in Italy with high quality materials.
The new design of the radiant element (Patent Pending) works like a central feeded dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary.
The coaxial coil at the bottom works like RF-choke for the optimum decoupling from mast and feeding line.
New !

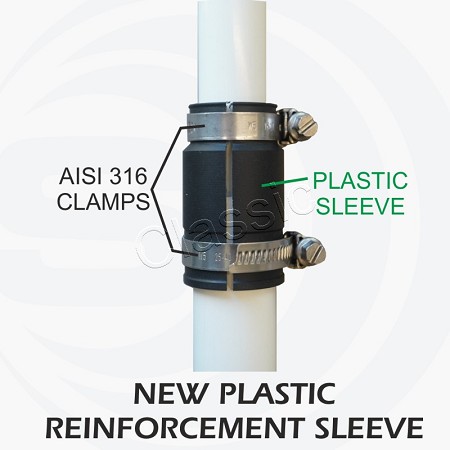

- New plastic reinforcement sleeve (see image)
- Suitable for mast max. ø 60 mm
Made of 4 telescopic fiberglass tubes, it is DC-grounded for the best protection from static discharges.
Gain-Master™ is the new reference standard in its class of antennas.
Specifications
| Antenna type | : | vertical 0,625 Lambda center fed dipole |
| Frequency range | : | 25,5-30 MHz |
| Impedance | : | 50 Ohm |
| Length | : | 7,36 with bracket |
| Max. power | : | 500 W CW (continuous); 1 kW PEP |
| Weight | : | 3 kg |
| Mounting mast | : | ø 35-60 mm |
| Connection | : | SO 239 |
Download brochure and/or manual for additional information.
Dimensions and weight are including packaging
| Dimensions |
: |
L195 x B13 x H10 cm |
| Weight |
: |
4,00 kg |
