SIGMA G5RV Full-Size

The SIGMA G5RV Full Size HF Wire Antenna is an HF Amateur Band, Receive and Transmit Antenna, covering 80 m to 10 m bands. It’s overall length is 102 ft (31,11 m), and should be fed with good quality 50 Ohms coaxial cable (recommended feed length of 45 ft/13,73 m or 90 ft/27,45 m). The ribbon cable should hang downwards and forms part of the radiating antenna.

To achieve optimum results, this antenna should be mounted as high as possible, either horizontally or in an inverted “V” formation, with the centre mounted at least 36 ft/10,98 m from the ground.

The superior Full Size G5RV comes fully assembled & ready to go. Also, the Poly Weave wire will not kink and is extremely strong. Excellent for use where space is limited, good for unobtrusive garden or attic installation and also highly recommended for Short Wave listening. Supplied complete with ladder feed and Dog Bone fittings.

Frequency	:	3,5-30 MHz
Bands	:	80, 60, 40, 30, 20, 17, 15, 12 and 10 meters
Full length	:	102 feet / 31,11 m - 2 x 51 feet / 15,55 m
Material	:	Poly weave none kink
Power rated	:	1 kW (1000 Watts PEP)
Ladder ribbon cable	:	30 feet 6 inches / 9,30 m.
Feeder terminated	:	in SO-239 Socket

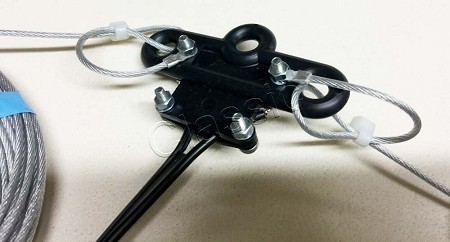

Insulators	:	2 x dog bone

This superior full size G5RV comes fully assembled and ready to go.
