DIAMOND BB-7V

HF vertical 2-30 MHz


Description
Excl VAT
Incl VAT
Per
Qty

DIAMOND BB-7V
Art. 302271
Item not available. Delivery time not yet known
Excl VAT € 313,22
incl VAT € 313,22
Per 1 St.
Temporarily sold out
All prices excl. shipping costs
FOR EU PRIVATE CUSTOMERS
VAT will be automatically recalculated for the country, of which the flag on top has been chosen.

COMPANIES WITH EU VAT-ID-NUMBER
Please register with EU VAT-ID-No. before ordering online the first time. After manual check we will change VAT into 0%. Existing customer, please login first.
Recommend item to a friend
Download this info in PDF

YouTube geblokkeerd

To view YouTube videos you must accept the 'Marketing' cookies.

The Diamond BB-7V is a lightweight, wide range HF vertical. Due to a strongly varying impedance over the large frequency spectrum, a manual or autotuner with a large tuning range is necessary for the adjustment.

Specifications

Frequency range : 2 - 30 MHz (Wide range ATU needed)
Antenna length : 6,70 m.
Number of sections : 6
Radials : no radials
Max. power : 250 W (SSB)
Connector : SO 239 (PL)
Support mast : ø 30-62 mm
Weight : ca. 2,3 kg

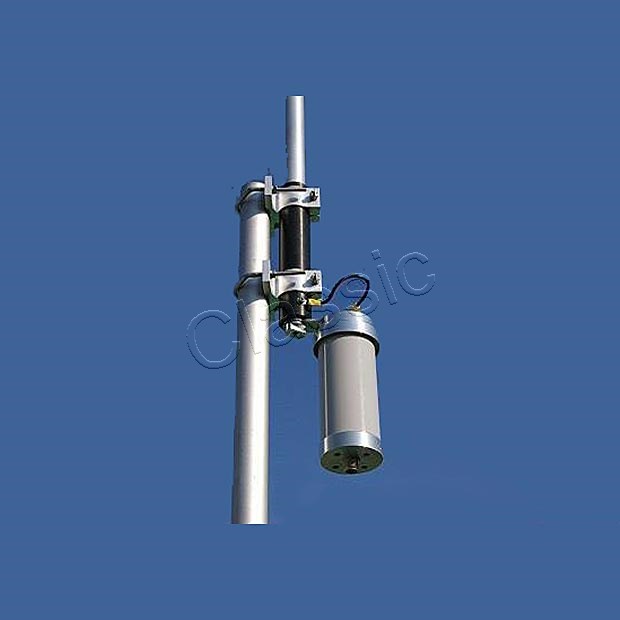

The housing of the matching network contains a 6:1 UNUN transformer and a non-inductive 600 Ohm / 120 Watt terminating resistor.

WARNING DIAMOND!

While using the new digital modes FT8 / FT4 / WSPR, there is an excessive load for the antenna and other equipment due to continuous carrier broadcast. Then reduce the output power for all Diamond antennas to max. 1/5 of the specified SSB(PEP) max. power.
.

Dimensions and weight are including packaging
Dimensions  :  L135 x B14 x H11 cm
Weight  :  3,50 kg
