The
Hamking HVT-100 is a versatile 9-band mobile antenna that is suitable for use on the HF, VHF and UHF bands, from 7 to 430 MHz.
The antenna design ensures that it delivers excellent performance over a wide frequency range. The Hamking HVT-100 comes with a diagram for optimization on the different frequencies / bands.
Specifications
| Frequency range | : | 40 m | 30 m | 20 m | 17 m | 15 m | 12 m | 10 m | 2 m | 70 cm |
| Type | : | HF-1/4 wave reduced | 50/144 MHz-1/4 wave | 144-430 MHz-5/8 wave |
| Polarization | : | Vertical |
| Impedance | : | 50 Ohms |
| Max. power | : | 130 Watts PEP |
| Connector | : | PL 259 |
| Weight | : | 300 gr |

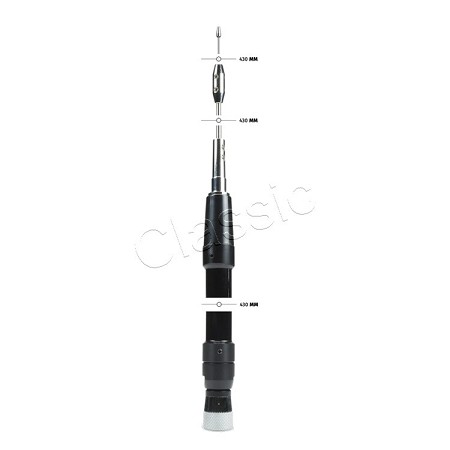

By turning the lower section, the antenna can be extended and the correct length for the respective band can be set according to the supplied diagram. Fine tuning by setting the length of the whip.
Dimensions and weight are including packaging
| Dimensions |
: |
L85 x B8 x H2,5 cm |
| Weight |
: |
0,50 kg |
