HamKing MHF-350M

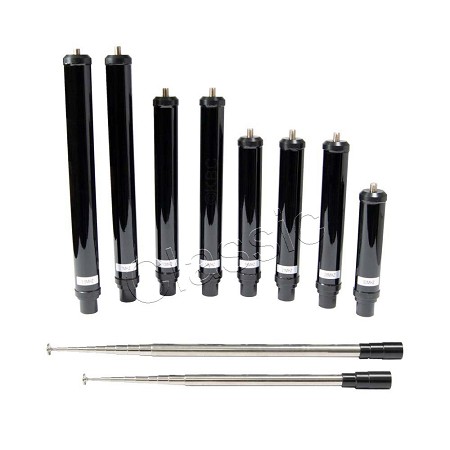

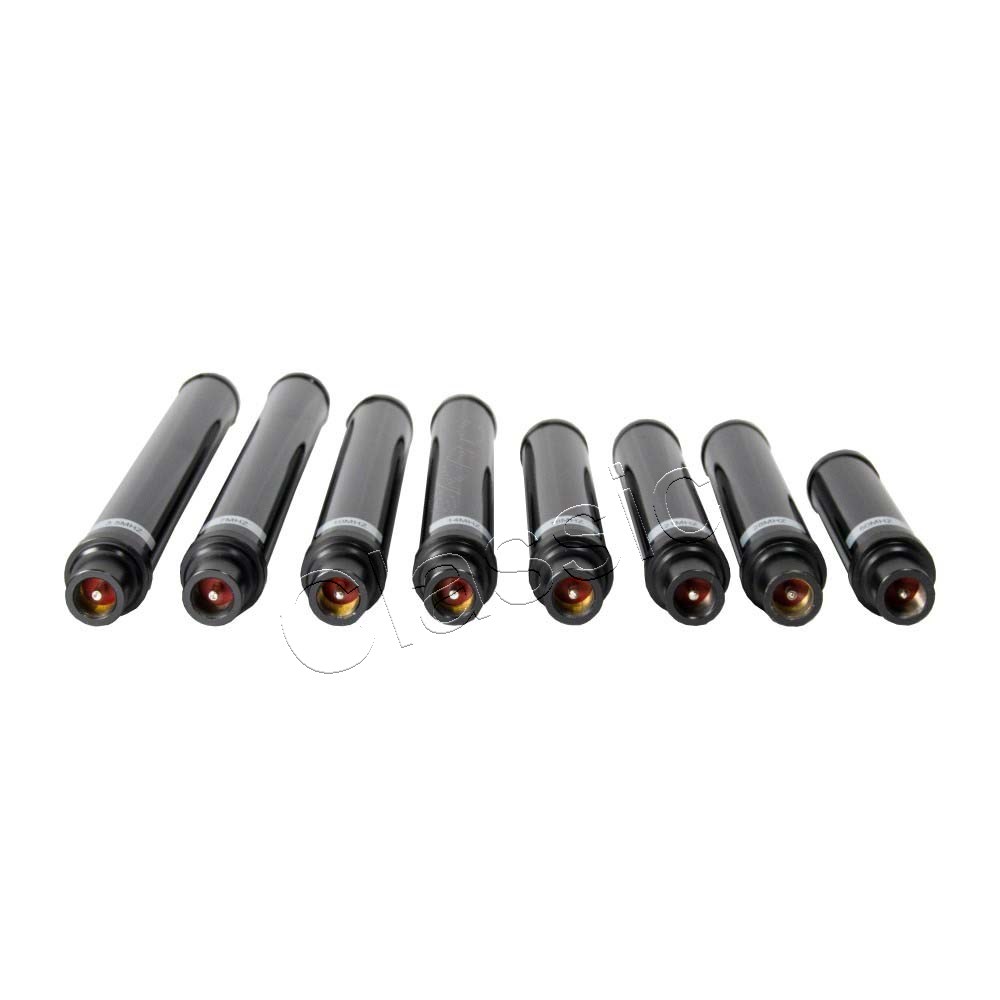

The HamKing MHF-350M is an 8-band HF/VHF base loaded mobile antenna kit suitable for 3.5, 7, 10, 14, 18, 21, 28 (29) and 50 MHz and has a PL259 connection. The antenna comes with an 8-way coil set and two telescopic whips: one for 3.5-28 MHz and one for 50+ MHz. All this packed in a nice carrying case.

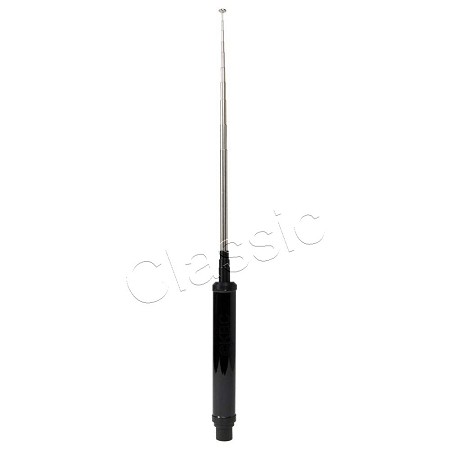

Screw up the antenna on a base with PL socket or magmount base with PL socket. By extending and retracting the telescopic whip in combination with the correct coil, the antenna can be easily adjusted to low VSWR on any band. Maximum power handling of 200 Watts SSB.

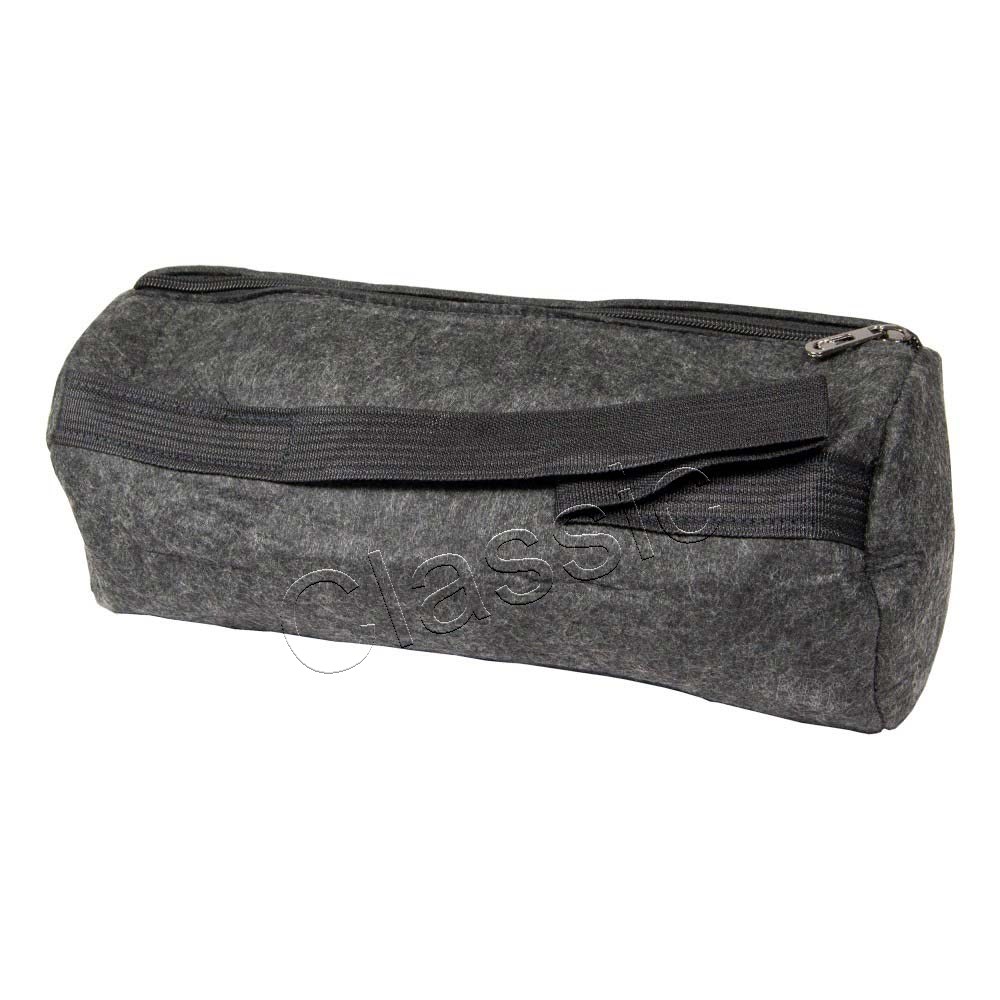

In the nicely finished carrying case you can store and protect the coils and whips of your HamKing MHF-350M or take them easily with you while travelling or to the next fieldday.

Specifications

Type	:	1/4 Base Loading
Frequency range	:	80 m | 40 m | 30 m | 20 m | 17 m | 15 m | 10 m | 6 m
Polarization	:	Linear Vertical
Impedance	:	50 Ohms
Max. power	:	200 Watts PEP
Connector	:	PL 259 (UHF-Male)
Weight	:	2,476 kg

Length coils	:	17-32,5 cm
Weight coils	:	197-340 gram

Overall lengths (indication)

3,537 MHz	:	237,5 cm - Adjustable 3,48-3,64 MHz
7,1000 MHz	:	231,6 cm - Adjustable 6,956-7,22 MHz
10,125 MHz	:	231,1 cm - Adjustable 9,97-10,13 MHz
14,175 MHz	:	229,9 cm - Adjustable 13,875-14,42 MHz
18,118 MHz	:	223 cm - Adjustable 17,59-18,24 MHz
21,225 MHz	:	218,5 cm - Adjustable 20,65-21,63 MHz
29,000 MHz	:	225,5 cm - Adjustable 27,90-29,95 MHz
51,500 MHz	:	137,2 cm - Adjustable 50,60-53,60 MHz
