The

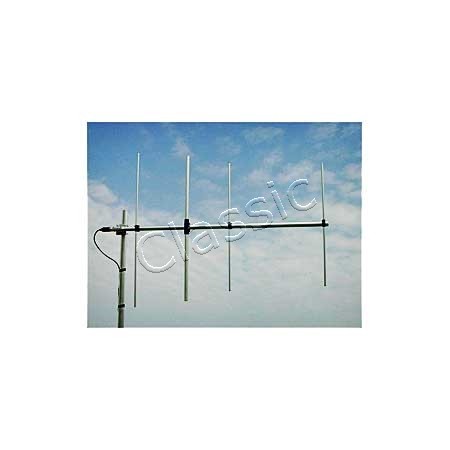

Sirio WY140-4N Base Station Antenna using an innovative feed system conceived and applied to have high symmetrical radiation pattem in both planes (E and H). lt is completely computer designed to get high performances and a wide bandwidth
(no tuning is required). All aluminium element- and boom material is protected by anodized treatment hardware are of stainless steel or zinc plated steel, mounting bracket is of extruded aluminium for the best strength.
The N-female connector is placed in rear position for an easily access and protected by a black rubber sleeve suitable for 5-7mm coaxial feedline.
Specifications
| Frequency range | : | 140-160 MHz |
| No. of elements | : | 4 |
| Gain | : | 6,4 dBd |
| Polarization | : | Can be mounted horizontally or vertically polarized |
| Front/Back ratio | : | >16 dB |
| Boom length | : | 1,60 m |
| Turning Radius | : | 1,54 m |
| Mounting type | : | Foremast |
| Windload | : | 0,119 m2 |
| Mast diameter | : | ø 35-52 mm |
| Connector | : | N-female |
| Max. power | : | 200 W CW |
| Weight | : | 2,07 kg |
Dimensions and weight are including packaging
| Dimensions |
: |
L160 x B10 x H10 cm |
| Weight |
: |
3,00 kg |
