ANjo EGB0145R

Linear and circular polarized omnidirectional antenna for the 2 meter amateur band

The "Egg Beater" antenna is horizontally polarized for low beam angles and circularly polarized for signals with a vertical angle of incidence between 60°-90°. This feature makes the antenna ideally suited for satellite communications without the use of large directional antennas and azimuth / elevation rotors.

Regardless of orbital speed, direction and elevation, with the "Egg Beater", without the use of an advanced antenna system and sat tracking software, you receive the signals from a satellite or ISS as soon as it appears above the horizon (AOS) with its characteristic of a horizontally polarized radiating antenna. During the further trajectory and with increasing elevation, the antenna gradually makes use of its characteristic as an omnidirectional RH circularly polarized antenna with a gain of about 6 dBic to then function as a horizontally polarized antenna again before settling down (LOS). No rotation or steering is required.

Technical data

Gain	:	6.2dBic (between 60°-90° angle)
Mechanical length	:	0.98m
Aperture	:	horizontal 360°, vertical 132°
Polarization	:	Right-hand circular for radiation between 60°-90° angle.
Weight	:	2.0 kg
Wind load	:	81N at 120km/h, 145N at 160km/h
Connection	:	Pigtail with quality N-socket
Max. Power	:	100W CW; 200W PEP

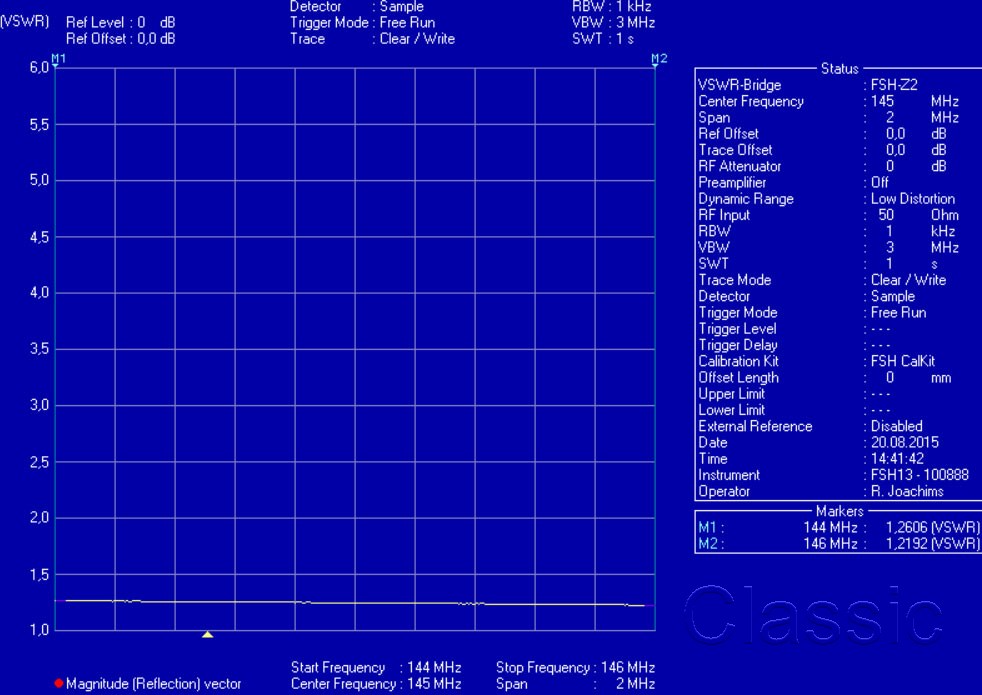

Impedance	:	50 Ohms; see SWR diagram
Mast clamp	:	for mast ø ca. 25-60 mm

There is also an Egg Beater antenna for 70 cm.
