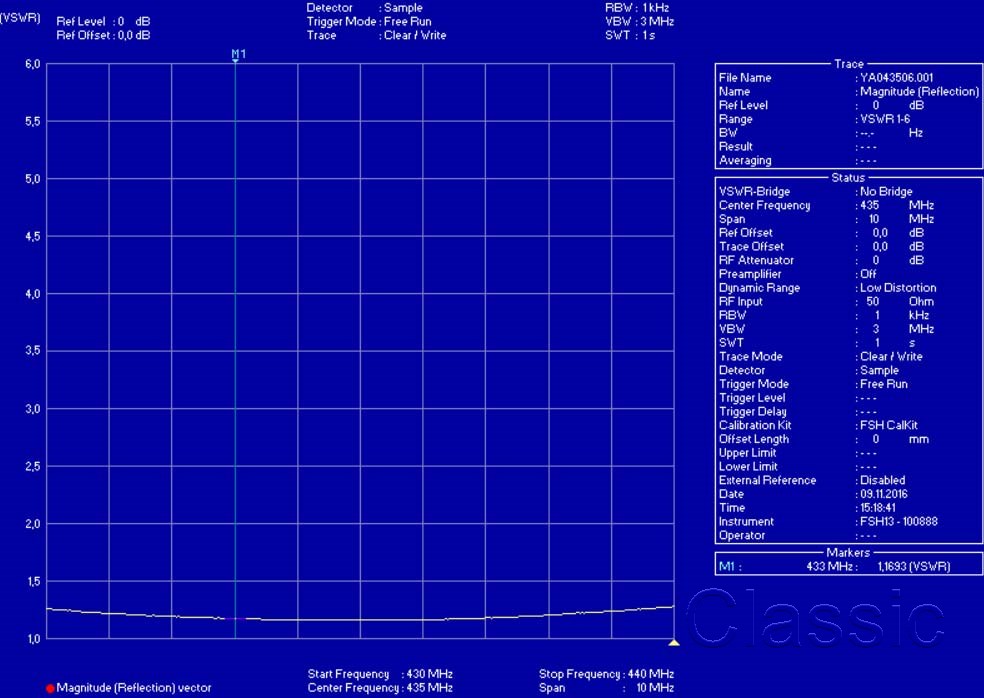

ANjo YA043506E is a gain optimized 6 elements wide space 2 m. foremast Yagi antenna with folded dipole and broadband 50 Ohm impedance; see SWR diagram.
ANjo antennas with measurable quality and precision (± 0,02mm!) are gain optimized yagi and log-periodic antennas in the frequency range 50 MHz to 3000 MHz, developed and produced in Germany.
The demanding VHF / UHF / SHF radio amateur can choose from a range of gain optimized, high quality Yagi antennas for Tropo, MS, EME and other modes. Circularly polarized satellite antennas, both as omnidirectional and directional antennas. Partially switchable LHCP or RHCP. Multiple stacked quadruple antennas with large horizontal aperture and optimal side lobe suppression and very small vertical aperture at the same time.
Specifications
| Frequency range | : | 430-440 MHz |
| Number of elements | : | 6 |
| Gain | : | 10,3 dBi |
| Front / rear ratio | : | 18,4 dB |
| Aperture | : | E=50,4° / H=71,4° |
| Boom length | : | 0,85 m |
| Mast diameter | : | ø 50 mm |
| Connection | : | N-connector female (incl. Coax balun) |
| Max. power | : | 150W CW; 300W PEP |
| Material | : | boom and elements of aluminum; mast clamp and connecting parts made of galvanized steel. |
| Weight | : | 0,5 kg |
| Stacking distance for horizontal polarization | : | H = 81 cm V = 59 cm |
| Stacking distance for vertical polarization | : | H = 59 cm V = 81 cm |
Dimensions and weight are including packaging
| Dimensions |
: |
L103 x B15 x H15 cm |
| Weight |
: |
0,70 kg |
