HYGAIN VB-64DX
HYGAIN VB-64DX

HYGAIN VB-64DX

Yagi 4 el. | 50-54 MHz


Description
Excl VAT
Incl VAT
Per
Qty

HYGAIN VB-64DX
Art. 301018
In stock. Delivered in 2-5 working days
Excl VAT € 177,69
incl VAT € 247,11   € 177,69
Per 1 St.
All prices excl. shipping costs
FOR EU PRIVATE CUSTOMERS
VAT will be automatically recalculated for the country, of which the flag on top has been chosen.
COMPANIES WITH EU VAT-ID-NUMBER
Please register with EU VAT-ID-No. before ordering online the first time. After manual check we will change VAT into 0%. Existing customer, please login first.
Recommend item to a friend
Download this info in PDF
Download manual

YouTube geblokkeerd

To view YouTube videos you must accept the 'Marketing' cookies.

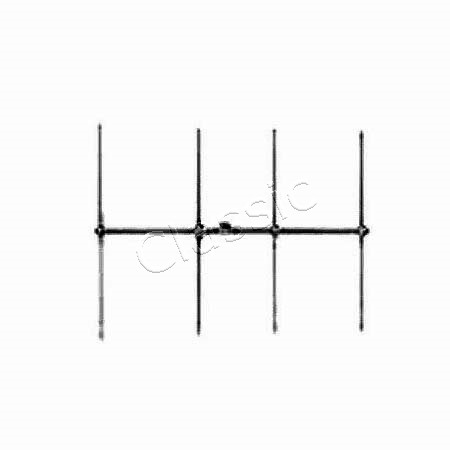

The HyGain 64DX is a four element, six meter beam optimum spaced for maximum forward gain. The beta match system allows the best possible match to coaxial cable with the broadest possible pass band. This antenna now includes stainless steel hardware for all electrical and most mechanical connections,

Specifications

Frequency Range : 50-54 MHz
Elements : 4
Gain : 8,2 dBd
Front-to-Back Ratio : 20-25 dB
Boom Length : 3,6 m.
Reflector Length : 3,2 m.
Turning Radius : 2,4 m.
Windload : 0,1 m2
Mast Diameter : ø 41-52 mm
Socket : SO 239
Max. Power : 1 KW PEP
Weight : 4,5 kg

Dimensions and weight are including packaging
Dimensions  :  L196 x B17 x H17 cm
Weight  :  6,40 kg
