The

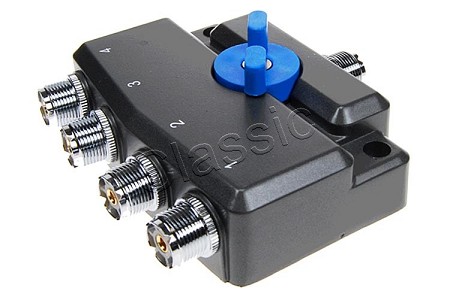

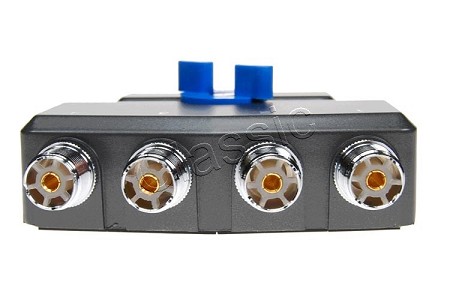

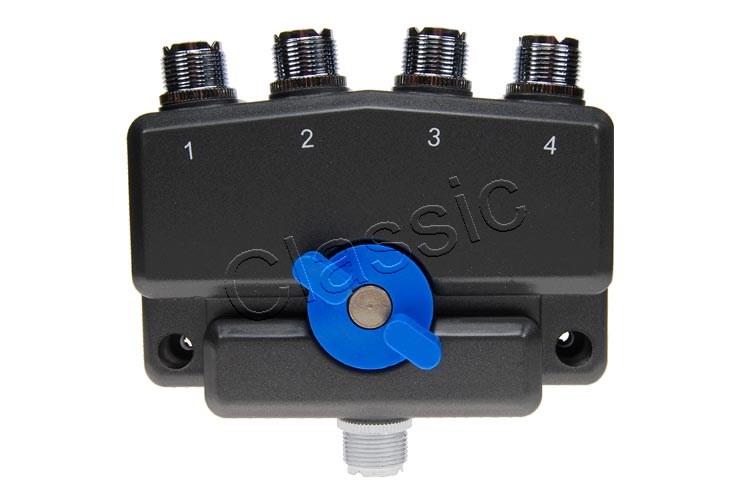

SW4M is a sturdy, 4-way coaxial switch. Modern look.
Specifications (according to specifications manufacturer)
| Frequency range | : | DC-900 MHz |
| Max. power | : | DC-30 MHz: 1,5 kW | 30 MHz-200 MHz: 1 kW | 200 MHz -500 MHz: 500 W | |
| : | 500 MHz-900 MHz: 150 W |
| Impedance | : | 50 Ohm |
| Connectors | : | 1x SO 239 (PL female) | 4x SO 239 (PL female) |
| Insertion loss | : | DC-500 MHz: < 0,1 dB | 500 MHz-900 MHz: < 0,2 dB |
| Isolation | : | DC-500 MHz: > 60 dB | 500 MHz-900 MHz: > 55 dB |
| Housing | : | metal |
| Weight | : | 0,905 kg |
Attention ! Do never operate switch when transmitting. This will damage contacts.
Dimensions and weight are including packaging
