The updated TTI TCB-900evo CB radio is the latest model in the TTI CB range with an integral front speaker developed to give outstanding performance with clear and crisp audio. Out of the box it has the option for either a traditional bracket mount or it can be mounted in a DIN sized hole.
The TCB-900 also has a very short back making it easy to fit in apertures of limited size and also includes a three colour selectable LCD display.
Especially for the truck drivers the loudspeaker as well as microphone connector are positioned at the front. The microphone has Up/Down/Vox buttons.
Specifications
| Channels | : | 40 FM /40 AM (selectable according to the restrictions in the various EU-countries) |
| Frequency range | : | 26.965-27.99125 MHz |
| Output power | : | 4 W |
| Input voltage | : | 12 VDC / 24 VDC |
| Current drain | : | TX 1,6 A |
| Audio output power max. | : | 4 W @ 8 Ohm |
| Dimensions | : | W 170 x D 94 x H 51 mm |
Features

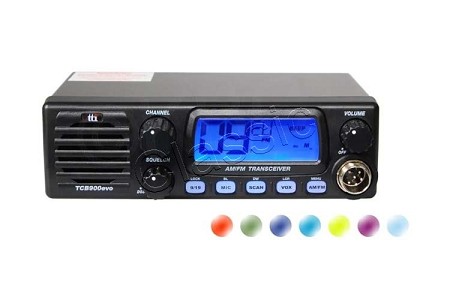

- Backlighted, multifunctional LCD display with 7 colors for user selection
- Vox function
- Front speaker
- Short body
- Digital S-/RF-meter
- Scan function
- Manual or dynamic squelch (DSS)
- Noise Blanker
- Attenuation
- Microphone Gain (H/M/L)
- Speaker Mute
- Keypad lock
- Channel selection on the front or by Up/Down on the microphone
- Menu Mode: Microphone Gain, Call Tone, Beep Tone on/off, TOT, Backlight Dimmer

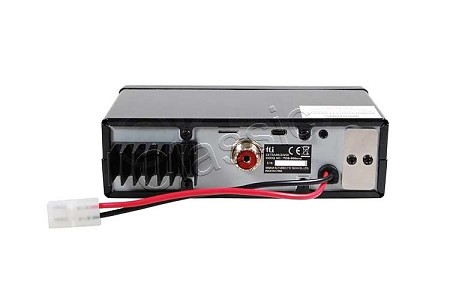

- External loudspeaker connection on the backside

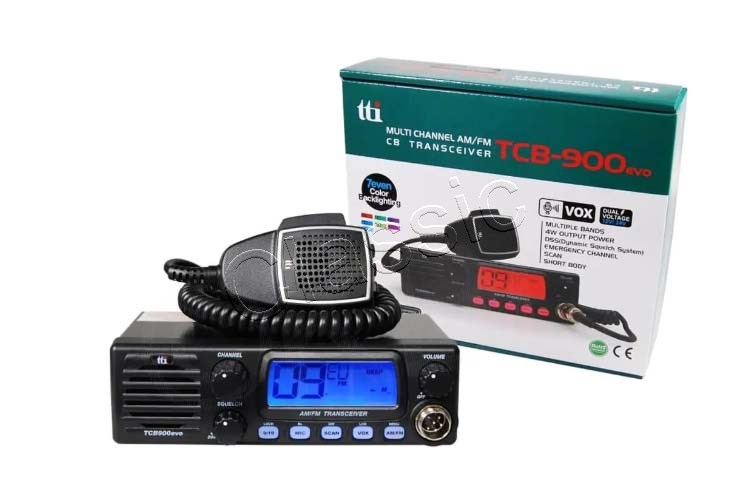

The TCB-900evo is supplied with:

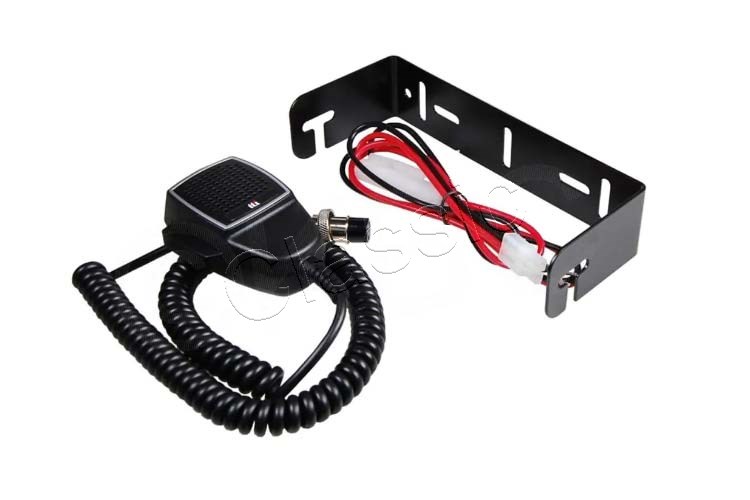

- Microphone (6-pin connector)
- DC-cable
- Radio mounting bracket
- Microphone mounting bracket
Dimensions and weight are including packaging
| Dimensions |
: |
L22 x B19,5 x H6 cm |
| Weight |
: |
1,40 kg |
