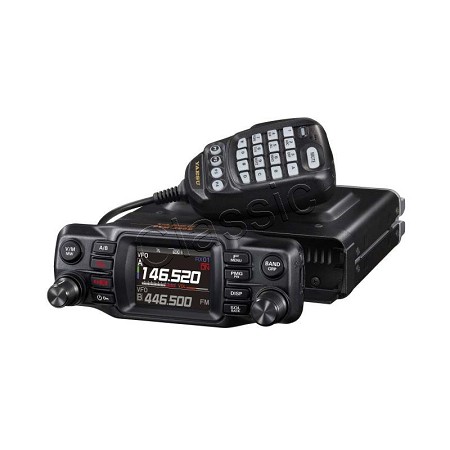

YAESU FTM-200DE

VHF/UHF C4FM/FM Mobile Radio with GPS
Free Yaesu Cap


Description
Excl VAT
Incl VAT
Per
Qty

YAESU FTM-200DE
Art. 30503535
In stock. Delivered in 2-5 working days
Excl VAT € 318,18
incl VAT € 318,18
Per 1 St.
All prices excl. shipping costs
FOR EU PRIVATE CUSTOMERS
VAT will be automatically recalculated for the country, of which the flag on top has been chosen.

COMPANIES WITH EU VAT-ID-NUMBER
Please register with EU VAT-ID-No. before ordering online the first time. After manual check we will change VAT into 0%. Existing customer, please login first.
The new Yaesu FTM-200DE is the small brother of Yaesu FTM-300DE and provides stable and reliable 50W RF power output. As in recent YAESU mobile transceivers, the FTM-200DE is also equipped with a heavy-duty heat sink that includes the Yaesu exclusive FACC (Funnel Air-Convection Conductor – Wind Tunnel).

Features

  • Digital communication using Yaesu C4FM
  • Equipped with AMS (Automatic Mode Select) feature that automatically selects the analog FM or the C4FM digital modes, according to the signal of the other station
  • Simulaneous reception of two separate frequencies, on different bands, or within the same band (V+V/U+U)
  • Memory Channel Band Auto Grouping (MAG). The memory channels are automatically categorized in each band, so that memory channels can be easily and quickly recalled
  • "E2O-II (Easy to Operate II)", which enables easier and smoother operation of frequently used functions, such as direct frequency input, memory channel recall, and signaling changes, which are used in the function menu.
  • MCS (Multi Channel Standby) is a convenient function that can automatically watch multiple memory channels that are registered in each group of the MAG function (except for M-ALL).
  • The DG-ID (Digital Group ID) feature and the Group Monitor (GM) feature enable automatically locating, and communicating with other stations that are within contact range and have the matching DG-ID number (Group ID number from 00 to 99).
  • The 2-inch High-Resolution QVGA Full-Color TFT Display shows the communication status and settings of the FTM-300DE in a straightforward manner, achieving excellent operability
  • Wide-band reception (108 MHz to 999.99 MHz)
  • Built-in GPS unit permits display of the current location and heading information
  • Large-capacity 1104 memory channels
  • 3W Audio Power Speaker with two individual jacks for the external speakers
  • Heavy Duty-Heat Sink with FACC (Funnel Air-Convection Conductor)
  • High-resolution scope that displays 61 channels
  • Smart Navigation function
  • Snapshot function (optional camera/microphone MH-85A11U is required)
  • Wires-X Portable Digital Node or Fixed Node with HRI-200
  • Equipped with digital GM (Group Monitor) function
  • Ready for APRS communication with world standard 1200/9600 bps AX25 modem
  • Digital Personal ID (DP-ID) feature
  • Compatible with microSD memory cards

Specifications

Frequency ranges RX : 108-137 MHz (Air Band), 137-174 MHz, 174-400 MHz, 400-480 MHz, 480-999,99 MHz
Frequency ranges TX : 144-146 MHz, 430-440 MHz
Circuit Type : Double-Conversion Superheterodyne
Modulation Type : F1D, F2D, F3E: Variable Reactance Modulation F7W: 4FSK (C4FM)
Output power : 50 W - 25 W - 5 W
Memories : 1.104
Antenna connector : SO 239 (PL-female)
Dimensions : L139 x W42 x H132 mm (without fan )
 : L139 x W43 x H18 mm (without knobs)
Weight : 1,1 kg

The transceiver is supplied with:

  • FTM-200DE Main Body
  • FTM-200DE Control Panel
  • DTMF-Microphone SSM-85D
  • Bracket for Main Body
  • Bracket for Control Panel
  • Long cable to Control Panel (3m)
  • USB-Cable
  • DC-Cable with fuse
  • Operating Manual

Detailed information can be found in brochure, ready for download.




Dimensions and weight are including packaging
Dimensions  :  L35 x B24,5 x H8,5 cm
Weight  :  2,50 kg
