The

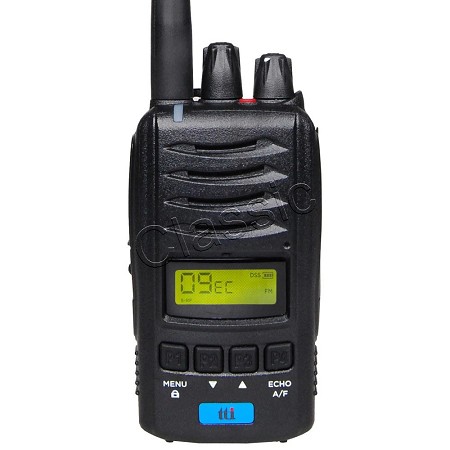

TTI TCB-H100 is a compact, robust CB walkie-talkie that can take a havy bump. The walkie-talkie is equipped with 40 AM/FM channels, which are pre-programmed for all European countries. Some unique features include 3-color backlit LCD display, echo and the Dynamic Squelch System (DSS) that prevents interference. With the 2600 mAh lithium-ion high capacity battery supplied as standard, a long talk time is possible. The two-way radio is supplied with antenna, battery, belt clip, desktop charger and AC/DC adapter.
Specifications
| Channels | : | 40 FM /40 AM (selectable according to the restrictions in the various EU-countries) |
| Frequency range | : | 26.65-28 MHz |
| Output power | : | 4 W |
| Input voltage | : | Li-Ion battery 7,4 V/2600 mAh |
| Antenna connector | : | SMA-Female |
| Audio output power max. | : | 1 W @ 16 Ohm |
| Dimensions | : | W 57 x H 116 x D 39 mm |
| Weight | : | 224 gr |
Features

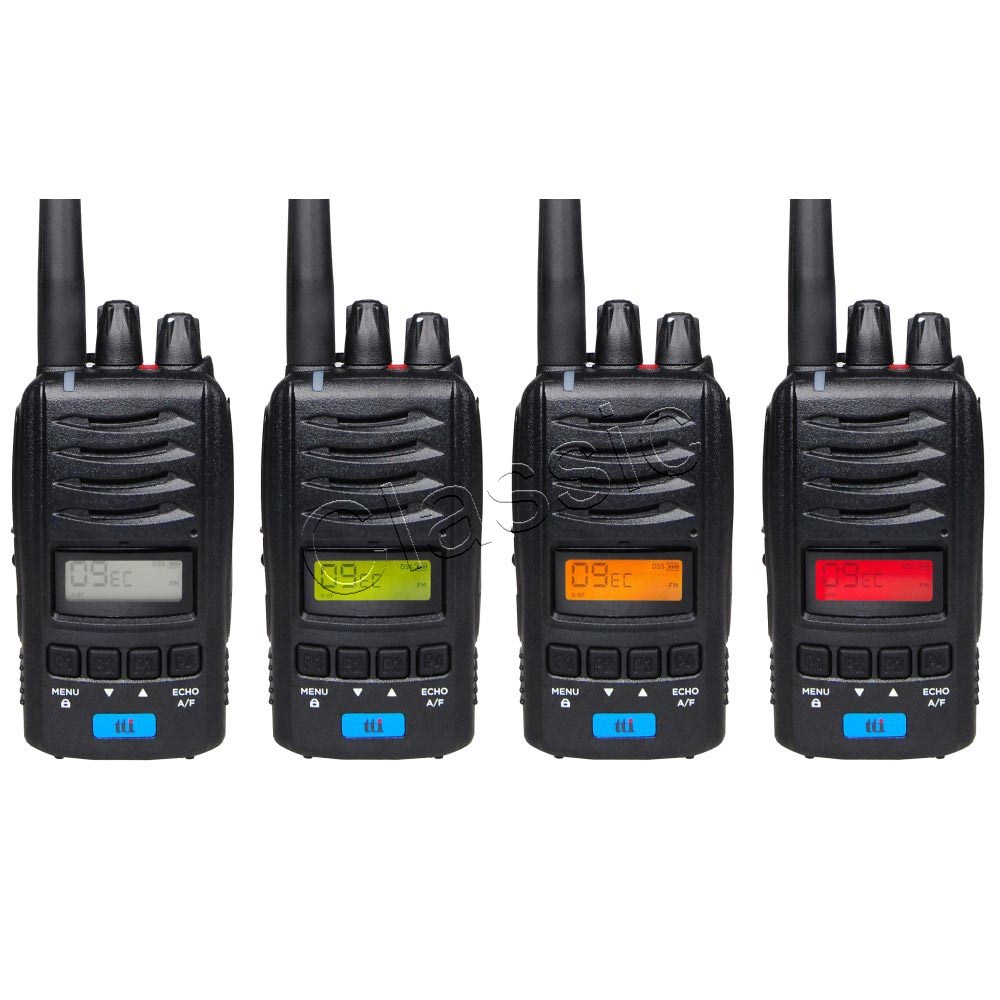

- Backlighted, multifunctional LCD display | Colors: green, orange, red for user selection
- Manual or dynamic squelch (DSS)
- Channel selection with P3/P2 up/down on the front
- Echo (switchable)
- Vox function, 3 sensitivity settings
- Roger Beep
- Scan function
- Digital S-/RF-meter
- Emergency button (channel 9/19)
- Keypad lock
- Battery indicator
- Connection for external speaker/microphone (right-hand side)
The TTI TCB-H100 is supplied with:
- Rubber duck antenna SMA-Male connector
- Li-Ion battery 7,4 V/2600 mAh

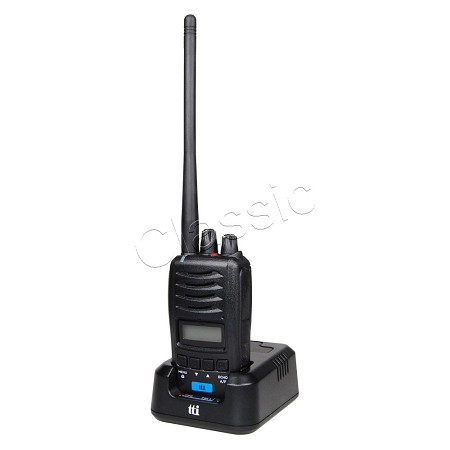

- Desktop charger with AC adapter

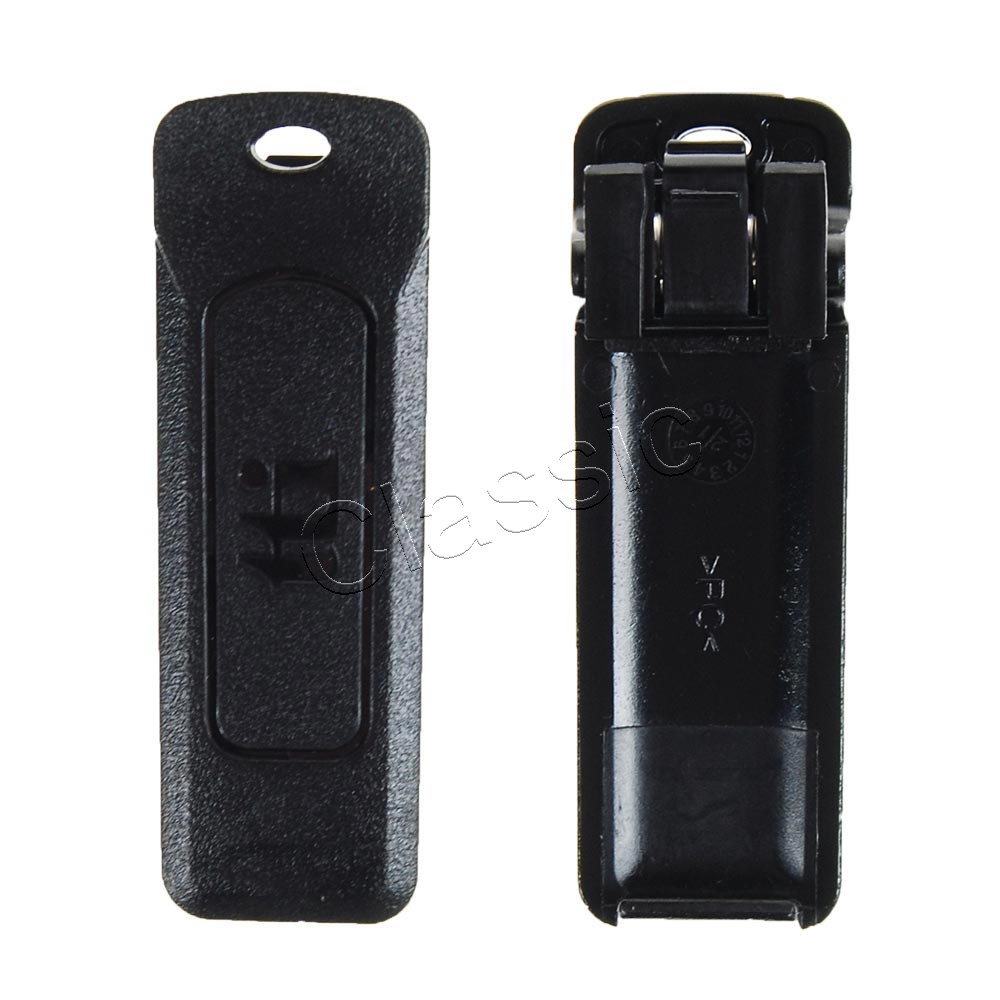

- Belt clip
Optional are available:
- 12/24 VDC Car Charger for desktop charger TTI TCB-H100
- 12/24 VDC Battery Eliminator with SO 239 (PL-female) antenna connector for mobile antenna
Dimensions and weight are including packaging
| Dimensions |
: |
L27 x B18,5 x H6,5 cm |
| Weight |
: |
0,68 kg |
