The

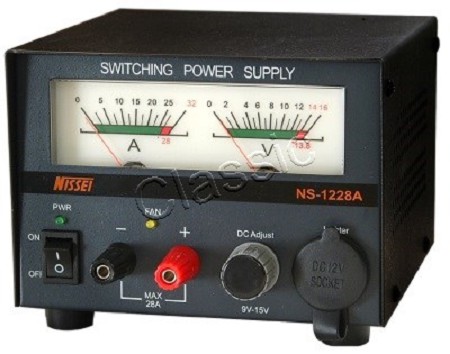

NISSEI NS-1228A is a super lightweight switching power supply. Great for use with 100 W transceivers.
Features
- Metal housing
- Has V- and A-meter (analogue)
- Frontside has cigarette lighter plug (max. 7 A)
- Protection modes include overcurrent or overvoltage
- Has internal, temperatur controlled fan.
Specifications
| Input voltage | : | 220 VAC ± 10% | 50 Hz |
| Output voltage | : | 9-15 VDC, adjustable | Fix on 13,8 VDC with switch in center |
| Current | : | 25 A continuous | 28 A max. |
| Dimensions | : | W 170 x D 145 x H 110 mm |
| Weight | : | 1,8 kg |
Dimensions and weight are including packaging
| Dimensions |
: |
L24 x B24 x H17 cm |
| Weight |
: |
2,50 kg |
