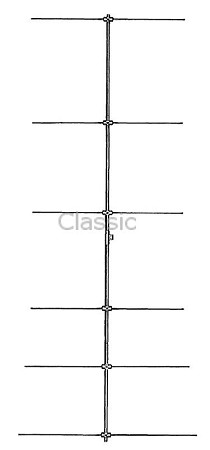

The VB-66DX features a concept in beam construction that provides actual delivered performance equalling maximum theoretical gain. The 6 element VB-66DX increases the gain to an unprecedented 10.3 dB
The HyGain 66DX is a six element, six meter beam optimum spaced for maximum forward gain. The beta match system allows the best possible match to coaxial cable with the broadest possible pass band. This antenna now includes stainless steel hardware for all electrical and most mechanical connections,
Specifications
| Frequency Range | : | 50-54 MHz |
| Elements | : | 6 |
| Gain | : | 10,3 dBd |
| Front-to-Back Ratio | : | 20-25 dB |
| Boom Length | : | 7,5 m. |
| Reflector Length | : | 2,97 m. |
| Turning Radius | : | 3,8 m. |
| Windload | : | 0,168 m2 |
| Mast Diameter | : | ø 41-52 mm |
| Socket | : | SO 239 |
| Max. Power | : | 1 KW PEP |
| Weight | : | 7,7 kg |
Dimensions and weight are including packaging
| Dimensions |
: |
L219 x B13 x H 16 cm |
| Weight |
: |
11,50 kg |
