DIAMOND WD-330S

Wire dipole T2FD - short version


Description
Excl VAT
Incl VAT
Per
Qty

DIAMOND WD-330S
Art. 3022483
In stock. Delivery time 2-5 days
Excl VAT € 144,63
incl VAT € 175,00
Per 1 St.
All prices excl. shipping costs

The Diamond WD-330S is a broadband folded dipole antenna according to the principle T2FD (Tilted Terminated Folded Dipole), which was developed in the 40s by the United States Navy. Impedance and radiation pattern are almost constant over a wide frequency range.

In the middle of the upper antenna wire is a non-inductive resistance of 390 ohm / 50 watt (!), which will absorb approximately 1/3 of the transmit power. The impedance in the center of the lower conductor is about 300 ohms and connected to the 50 Ohm coaxial feedline via 1: 6 balun. Some 50 cm long spreaders will hold the two conductors at a give distance. Usually 1/100 at the lowest frequency. The best results are obtained when the antenna will be hanged sloping at an angle of 20-40 degrees.

Suitable for radio listening amateur as well as professional applications.

Specifications

Frequency range : 2-28,6 MHz

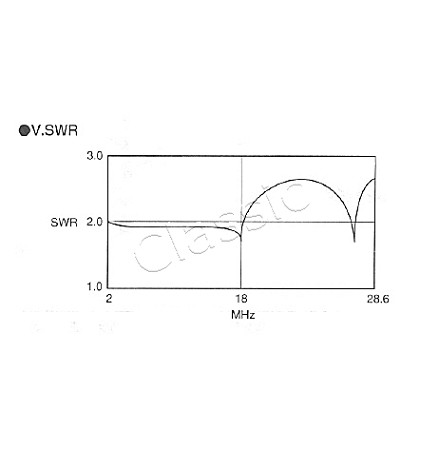

SWR range : 1:2 -> 2-18 MHz | 1:3 above 18 MHz
Total length : 10 m.
Impedance : 50 Ohm
Connector : PL socket
Max. power : 150 W PEP
Weight : 1,7 kg

Dimensions and weight are including packaging
Dimensions  :  L53 x B23 x H11 cm
Weight  :  2,90 kg
