The antenna switch

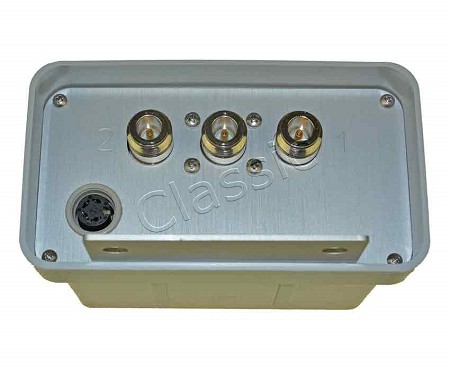

SSB AS-3000 is an electrically operated switch for two antennas. The unit is built into a weatherproof housing with mast mount. The switch is equipped with a highly loadable power relay, which is built into a weatherproof UV-resistant plastic housing. The lower part consists of a solid aluminium-angle with zinc plated clamps for installation at the mast. The switch is suitable from DC to 3 GHz.
Specifications
| Power handling capacity | : | 1000 W/2m; 800 W/70cm500 W/23cm; 250 W/13cm |
| Connectors | : | Type „N“ Female |
| Switching voltage | : | 12 V at 250mA |
| Mast diameter | : | 58 mm max. |
Dimensions and weight are including packaging
