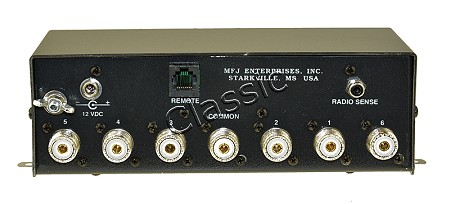

Use this MFJ-4716 Six-position Antenna Switch on your desk or place it out-of-way under your desk or in another room and use a remote control.
A simple rotary switch lets you select 1 of 6 antennas. All unused inputs are grounded. You can connect a sense line to your transceiver so when it is off, all inputs are automatically grounded. In the OFF position, all inputs are grounded or control is transferred to the MFJ-4716RC, Remote Control.
Ultra-fast gas discharge tube lightning surge protector protects transceiver and safely shunts static electricity and lightning induced surges safely to ground. Does not protect against a direct lightning hit.
Super easy-to-use -- just one simple rotary switch. There are no complicated computer buttons to learn or microprocessors to fail or generate RFI that could mask rare DX.
Specifications
- 1 + 6 x SO-239 connectors
- 1500 Watts P.E.P.
- 50-75 Ohm load
- 1-60 MHz. Useable to 150 MHz
- Connects to MFJ-4716RC remote control with common CAT 5 cable, not included
- Use 12 VDC or 220 VDC with MFJ-1312DX.
For indoor use, not weather protected.
Dimensions and weight are including packaging
| Dimensions |
: |
L29 x B14 x H9 cm |
| Weight |
: |
0,71 kg |
