The

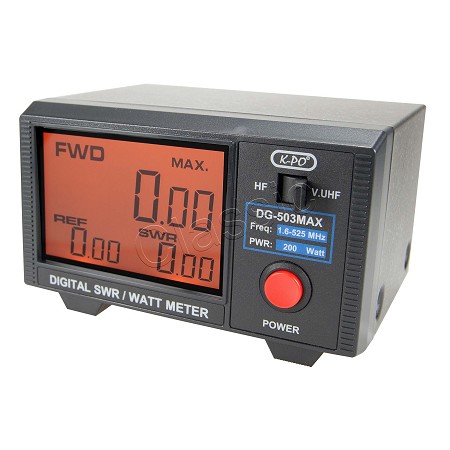

KPO DG-503 N MAX is a high quality digital true peak power SWR/Power meter for accurate measuring of PEP forward power, reflected power and SWR on HF, VHF and UHF frequencies. The meter has separate couplers for HF/6M and VHF/UHF and a large 3,5" LCD display with backlight.

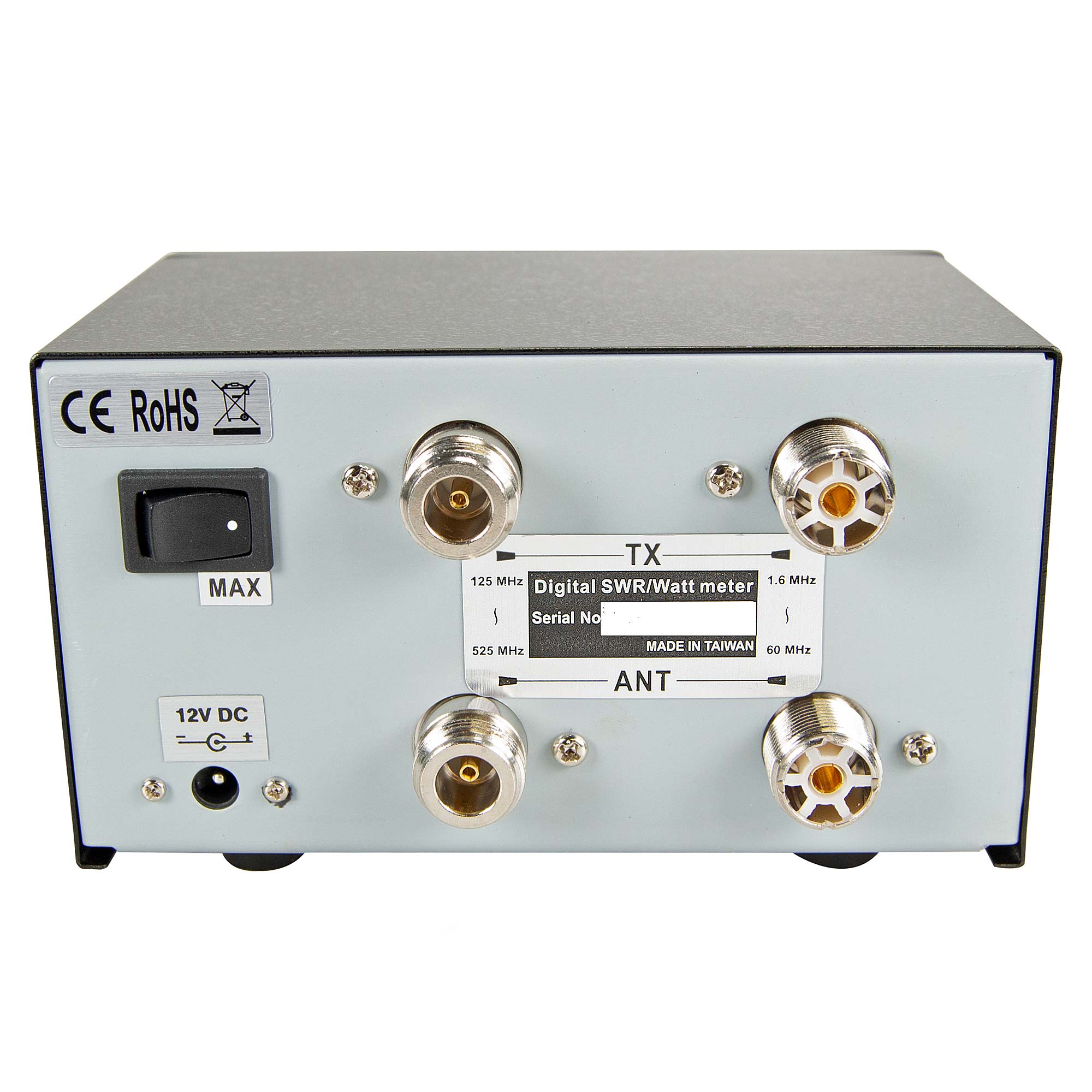

The meter has N-female connectors for the VHF/UHF range.
Specifications
| Frequency range | : | 1,6-60 MHz + 125-525 MHz |
| Type meter | : | digital |
| RF coupler | : | separate couplers for HF/6M and VHF/UHF |
| Technical construction | : | SMD |
| Max. power handling | : | 200 W incl. true peak power measurement |
| Min. power input SWR | : | 300 mW |
| Precision | : | ± 5% |
| Impedance | : | 50 Ohm |
| Voltage | : | 12 V (DC cable is included) |
| I/O connectors HF/6 M | : | 2 x PL-female (SO 239) |
| I/O connectors VHF/UHF | : | 2 x N-female |
| Dimensions | : | W140 x H84 x D122 mm |
| Weight | : | 750 g |
Dimensions and weight are including packaging
| Dimensions |
: |
L15 x B15 x H10 cm |
| Weight |
: |
0,81 kg |
